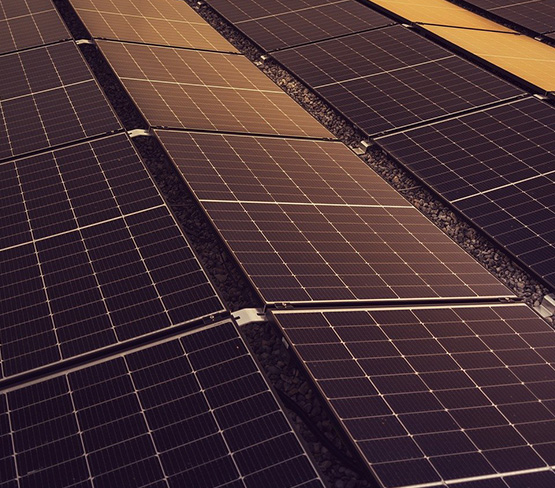

Rigid solar panels

Product Features:

Ultra-white tempered glass is generally used, which has high light transmittance, high strength and good weather resistance. Ultra-white tempered glass can allow more sunlight to pass through, improving the power generation efficiency of solar panels.
Its high strength characteristics can effectively protect the cells from external mechanical damage, such as hail, wind and sand, etc. At the same time, good weather resistance enables it to work stably for a long time under various harsh climatic conditions.EVA (ethylene-vinyl acetate copolymer) is one of the commonly used packaging materials. It has good adhesion, light transmittance and weather resistance, and can tightly bond the battery cell, glass panel and backplane together to form a sealed whole.
The backplane is usually made of polymer materials, such as polyvinyl fluoride composite film (TPT) or polyethylene terephthalate (PET), which has good insulation, waterproof and aging resistance, and can protect the back of the battery cell from erosion by water vapor, dust, etc.

Online Message Get a Quote

Brief introduction

Usually made of materials such as monocrystalline silicon or polycrystalline silicon, it is the core power generation component of rigid solar panels. These cells undergo strict quality testing and screening to ensure their photoelectric conversion efficiency and stability.

Theory

Rigid solar panels use high-quality silicon materials and advanced manufacturing processes, and have high photoelectric conversion efficiency. The conversion efficiency of monocrystalline silicon rigid solar panels is generally between 15%-24%, and the conversion efficiency of polycrystalline silicon rigid solar panels is generally between 12%-18%.
High conversion efficiency means that under the same lighting conditions, rigid solar panels can generate more electricity, thereby improving the overall performance of solar power generation systems.

Flow chart

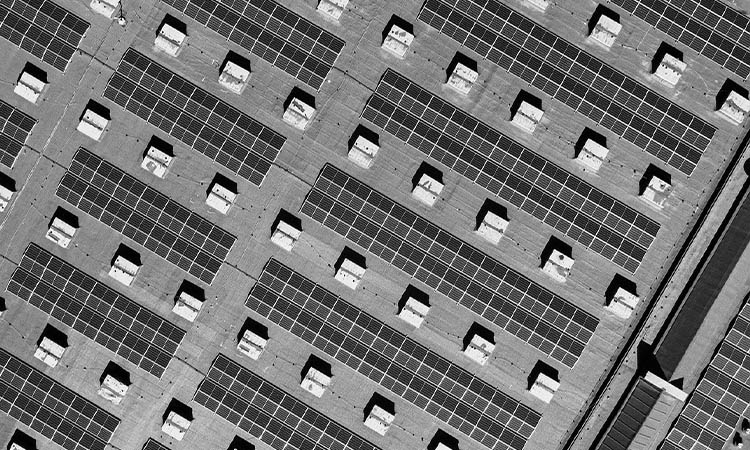

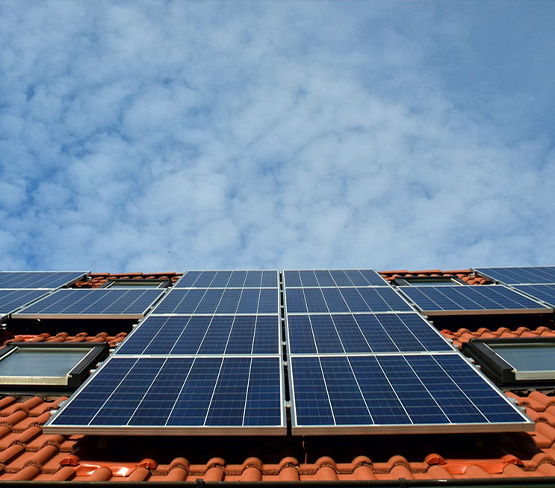

Rigid solar panels usually have standard sizes and specifications for easy installation and fixing. They can be installed on roofs, ground, walls, etc. by bolts, clamps, etc. During the installation process, it is necessary to pay attention to the orientation and inclination of the solar panel to ensure that it can receive sunlight to the maximum extent and improve power generation efficiency.

Specification parameter

Product Code	Product Name	Filtration Accuracy (μm)	Flow Rate (m³/h)	Working Pressure (MPa)	Material	Connection Method	Dimensions (mm)
P001	Air Filter	0.1 – 10	10 – 1000	0.1 – 1.0	Stainless Steel, Fiberglass	Threaded Connection, Flange Connection	200×100×300
P002	Liquid Filter	1 – 100	5 – 500	0.2 – 0.8	Stainless Steel, Polypropylene	Quick Connector, Flange Connection	300×150×400
P003	Oil Filter	5 – 50	3 – 300	0.3 – 0.6	Stainless Steel, Paper Filter Element	Threaded Connection, Flange Connection	250×120×350
P004	Water Filter	0.5 – 50	8 – 800	0.1 – 0.6	Stainless Steel, Ceramic Filter Element	Flange Connection, Clamp Connection	350×180×450

Display of components of horizontal vacuum filter

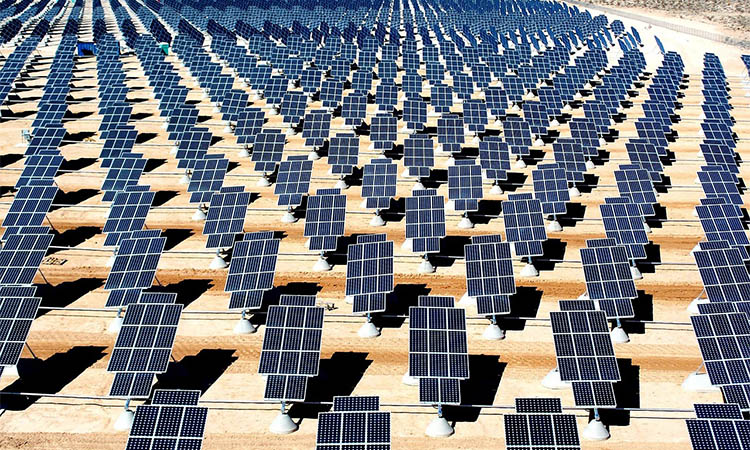

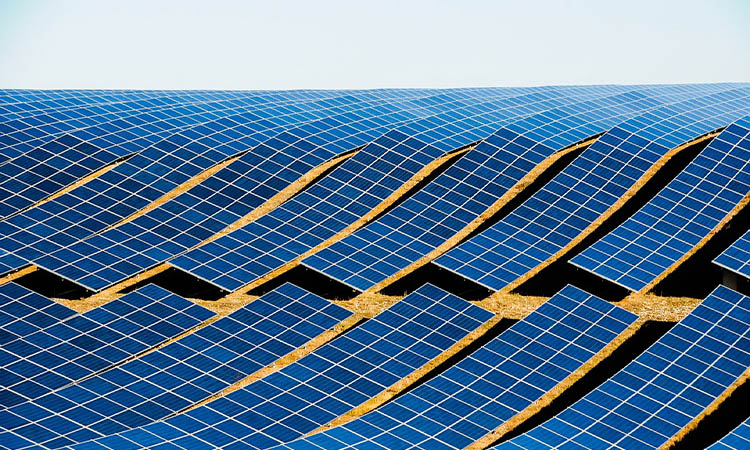

Remote areas

Field work

Outdoor facilities
